ns-3 / 5G-LENA · nr moduleGSoC 2026 · mentor review

Architecture & Workflow Report

NR Energy
Framework

A PHY-driven energy consumption framework: the listener decoupling in d5f36416, the TR 38.840 UE and TR 38.864 gNB power models, the connected-mode DRX state machine — and validation against measured 5G base-station hardware.

01 — The decoupling decisionlistener

02 — Component architecturemodels

03 — Workflow sequences · UE / DRX / gNBtraces

04 — Flexible symbols & micro-sleepTDD

05 — ns-3 validation, real traces & calibrationdata

nipuna dulara

p. 01 / 11

The early NrPhyEnergyListener deliberately held pointers into the scheduler and the UE-MAC. They were added with the ambition of one day driving a future energy-aware scheduler that could react to the energy model in the loop. But that scheduler never materialised, and the pointers were never read. Everything the energy formulas actually need is already visible at the PHY:

sf (bandwidth utilization) is derived from PHY-layer per-slot stats — not from the scheduler.
DRX state belongs to a dedicated model — not to a UE-MAC hook.

Removed in d5f36416

✕ SetScheduler(Ptr<NrMacSchedulerNs3>)

✕ SetUeMac(Ptr<NrUeMac>)

✕ m_scheduler · m_ueMac

✕ #include "nr-mac-scheduler-ns3.h" · "nr-ue-mac.h"

The commit locked in the framework's core design rule: listeners are driven purely by PHY trace sources.

Before

NrPhyEnergyListener

combined UE + gNB bridge

m_uePhy · m_gnbPhy
m_ueModel · m_gnbModel
m_scheduler ← never read
m_ueMac ← never read

NrMacSchedulerNs3

MAC · unused coupling

NrUeMac

MAC · unused coupling

After

NrPhyEnergyListener

PHY events only

m_uePhy · m_gnbPhy
m_ueModel · m_gnbModel

What it enabled next

→ split: NrUePhyEnergyListener
→ split: NrGnbPhyEnergyListener
→ DRX owned by NrUeDrxModel

← → navigate · E edit

p. 02 / 11

UE node

gNB node

NrUePhy

· existing PHY

traces: ReportDownlinkTbSize · ReportUplinkTbSize

NrUePhyEnergyListener

bridge · extracts params, drives models

SetPhy() · SetEnergyModel() · SetDrxModel()

NrUeEnergyModel

TR 38.840 §8 power states

ChangeState() · ApplyBwpScaling()
SetUlTxPowerDbm() · E = P·Δt

NrUeDrxModel

C-DRX timers · owns sleep

Start() · NotifyDataActivity()

NrGnbPhy

· existing PHY + one new hook

NEW TRACE SlotEnergyStats · fires every slot

splits used symbols by direction — DL-data ·
UL-data · PDCCH · PUCCH/SRS, + REG & RB
counts, so each is charged at its own power

NrGnbPhyEnergyListener

bridge · computes sa / sf / sp

SetPhy() · SetEnergyModel()

NrGnbEnergyModel

TR 38.864 §5 · P1..P5 + P_DL / P_UL formulas

UpdateSymbolPower(sa,sf,sp,type) ×14 · FinalizeSlotEnergy()

energy::EnergySource

standard ns-3 DeviceEnergyModel attach

p. 03 / 11

TR 38.840 Table 18 · rel. power

State	FR1	FR2
Deep sleep	1	1
Light sleep	20	20
Micro sleep	45	38
PDCCH-only	100	175
SSB / CSI-RS	100	175
PDCCH+PDSCH	300	350
UL Tx	250–700	350

Active DL states additionally carry the cached BWP × antenna × blind-decoding multipliers (§8.1.3). Sleep and UL states are unscaled.

deep sleep = 1 unit · PowerUnit attribute sets mW per unit

p. 04 / 11

Timer state machine (runs on the ns-3 scheduler)

StartCycle every LongCycle → ChangeState(PDCCH_ONLY)

NotifyDataActivity (from listener) → restart inactivity timer

EndOnDuration + no inactivity running → GoToSleep()

InactivityExpired → GoToSleep()

GoToSleep() — sleep-depth decision

gap = nextOnDuration − now
gap ≥ DeepSleepThreshold → DEEP_SLEEP (1 unit)
gap < DeepSleepThreshold → LIGHT_SLEEP (20 units)

Deeper sleep only amortises its transition cost over a long inactive gap (TR 38.840 §8.1) — the threshold encodes that break-even point.

Power over one long cycle (relative units, log-feel scale)

LongCycle = 160 ms

OnDuration = 8 ms

InactivityTimer = 10 ms

DeepSleepThreshold = 20 ms

Attributes follow TS 38.321 names; defaults match the TR 38.840 power-saving evaluation baseline.

listener owns active states · DRX owns sleep states

p. 05 / 11

TR 38.864 §5.1 active-power formulas

P_DL = P3 + sa·(P4−P3)·[A + (sf·sp/η)·(1−A)]
P_UL = P3 + sa·(P5−P3) · no sf/sp term
η = 1.0 (or 0.76 when sf·sp < 0.5, EtaDual)

Table 5.1-3 · BsCat1 / Set1 (macro FR1)

P1 deep	P2 light	P3 micro	P4 DL	P5 UL
1	25	55	280	110

Also in the lookup: Cat1/Set2, Cat1/Set3, Cat2/Set1. A = 0.4 default (AntennaRatio_A).

sf computed separately for the PDSCH region and the PDCCH region

p. 06 / 11

The issue. A TDD pattern names slots D / F / U. Mapping the F ("flexible") slot type to guard-or-idle power under-charges the gNB: in 5G-LENA an F slot is dually schedulable. DL ctrl + DL data + UL data + UL ctrl can all be placed in it.

The fix. Ignore the slot type entirely. The scheduler resolves every allocated symbol to a definite DL or UL direction (var-TTIs) before the slot executes, and SlotEnergyStats reports that resolution. The energy model keys off per-symbol activity, not slot labels . (a fully-scheduled F slot has zero idle symbols. Only a symbol that no var-TTI allocates is genuinely idle.)

Example resolved F slot — 14 OFDM symbols

0

13

DL ctrl → P_DL @ sf_ctrl DL data → P_DL @ sf_data UL data / ctrl → P_UL unallocated → P3 micro-sleep

When is micro-sleep chosen?

Side	Rule
gNB	Any symbol no var-TTI allocates is charged at P3 (55 units) — idle = 14 − scheduled symbols, per slot.
gNB	P3 is also the static baseline: the model's initial discrete state, and the approximation used while TRANSITIONING (wake-up).
UE	Micro-sleep (45 / 38 units) is defined in the table, but sleep is DRX-owned: light vs deep chosen by the 20 ms gap rule; after an active slot the UE returns to PDCCH-only monitoring.

"idle symbol" ≠ 3GPP guard slot type

p. 07 / 11

NETDATA 24h REPLAY · measured vs model(t)MAPE 4.0% · 7.2%

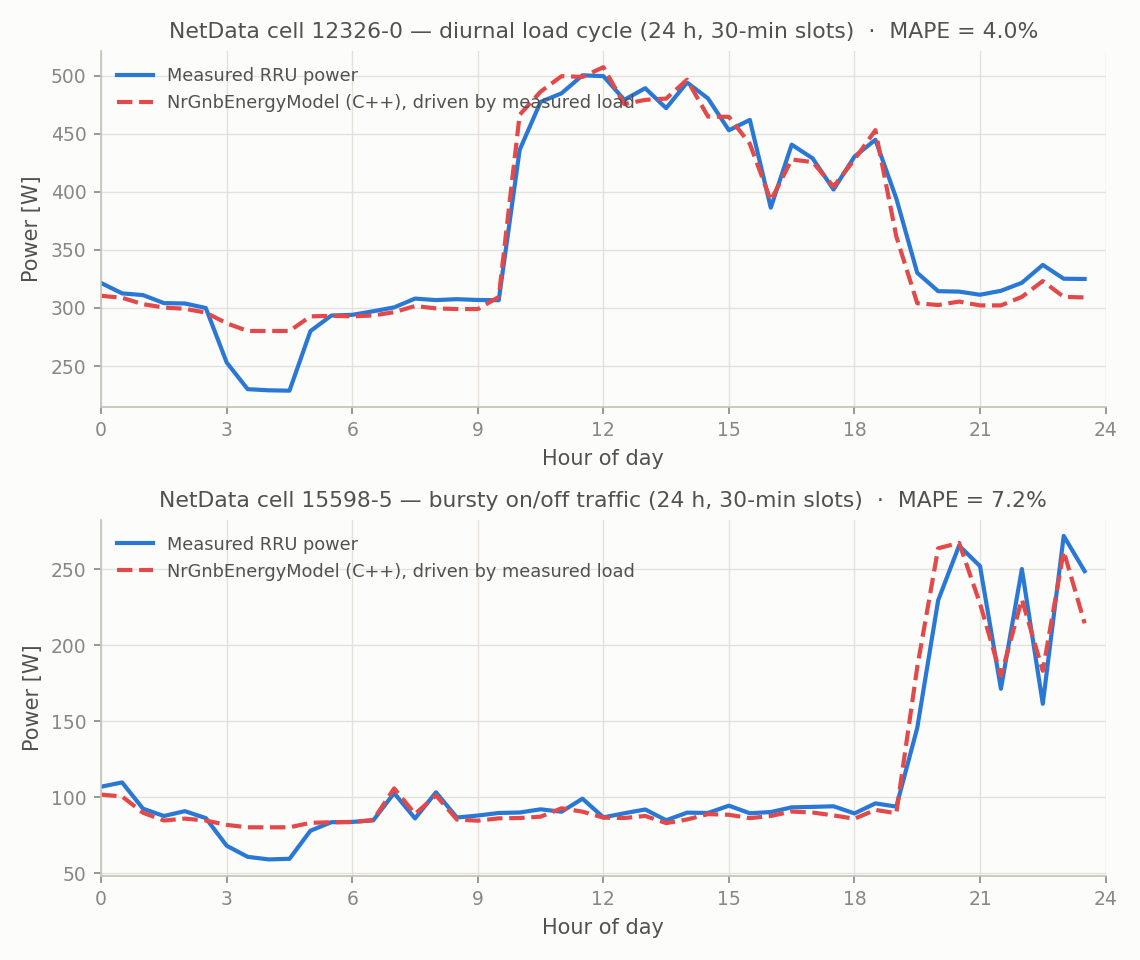

Two NetData cells: measured RRU power vs NrGnbEnergyModel driven by the measured load, over 24 hours

Each cell's 24h PRB trace drives the compiled model (PRB% → sf); its own OLS-fit PowerUnit / AntennaRatio_A emit absolute watts.

The two measurement datasets

Dataset	Source	Scale · cadence	Load / power signal
ITU	ITU AI/ML challenge (Kaggle)	923 BSs · 1 h	normalized load / energy
NetData	Tsinghua fib-lab (Git-LFS)	~20 k cells · 30 min	PRB usage % (= sf) / RRU W

Complementary: ITU is a large macro fleet on a normalized load axis; NetData reports the PRB usage ratio — which is the TR 38.864 sf directly — alongside absolute RRU watts. Shutdown / deep-sleep rows are excluded so both describe the active-power curve.

The two replayed cells · scope

· 12326-0 diurnal — 229–500 W, morning ramp + evening fall-off, MAPE 4.0%.
· 15598-5 bursty on/off — 59–272 W, near-idle then sharp evening bursts, MAPE 7.2%.
· Each cell's own OLS-fit PowerUnit / AntennaRatio_A emit its absolute watts — a genuine per-cell calibration.
· Check A calls the model formula in a loop. Check B (next) removes that shortcut — power is read from the live listener inside a running sim.

cttc-nr-energy-replay --mode=replay · driven sample-by-sample by measured load

p. 08 / 11

NETDATA 24h · LIVE-LISTENER SIMcorr 0.99 · MAPE 9.0% / 4.6%

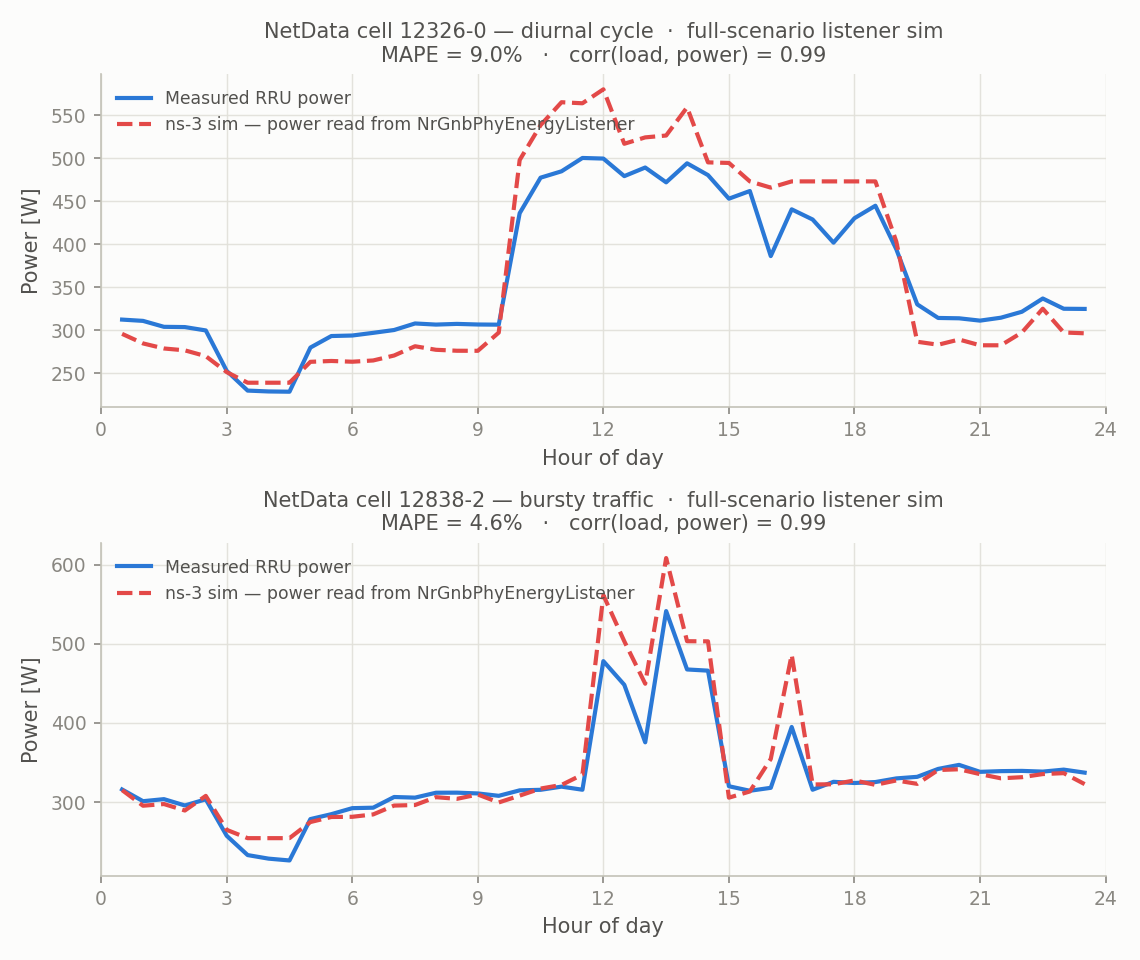

Two NetData cells: measured RRU power vs ns-3 power read from NrGnbPhyEnergyListener in a running simulation, over 24 hours

Power read from the real listener in a running sim tracks every ramp, peak and dip — corr(load, power) = 0.99 for both cells.

Injecting the load · as a time-varying UDP rate

PRB usage is a scheduler output — it cannot be injected directly. So cttc-nr-energy-loadtrace modulates the aggregate UDP-downlink rate over time to load(t) · (saturating rate), lets the NR scheduler decide the resulting resource use, and samples the gNB power once per step.

trace load(t) → UDP DL rate → NR scheduler → used symbols/slot
→ NrGnbPhy "SlotDataStats" → NrGnbPhyEnergyListener
→ NrGnbEnergyModel → power(t)

Unlike check A (formula in a loop), the whole PHY → listener → model chain runs live — a ~48 s simulation per cell.

The full pipeline behaves

· 12326-0 diurnal MAPE 9.0% · 12838-2 bursty MAPE 4.6% — correlation 0.99 both.
· Idle floor matches (sim 239 W vs measured 229 W); at high load the full symbol-level pipeline runs a few % hotter.
· That heat is the symbol-accounting signature — the same reason the sweep saturates at 303 W where the bare formula gives 280 — re-absorbed by the U / A knobs per deployment.
· Load matching is approximate by construction: driving PRB usage through traffic is open-loop.

cttc-nr-energy-loadtrace · load reproduced inside a live sim, power read back from the listener

p. 09 / 11

The model · fixed table + two free knobs

P_DL(sf) = U · [ P3 + (P4−P3)·( A + sf·(1−A) ) ]

{P1..P5} = {1, 25, 55, 280, 110} fixed by TR 38.864 Table 5.1-3. Only U and A are tunable — exposed as ns-3 attributes.

Knob	Attribute	Meaning
U	PowerUnit	watts per relative power-unit — sets absolute scale
A	AntennaRatio_A	static power fraction ∈ [0,1] — idle-vs-active split

Closed-form calibration · per BS / cell

fit an OLS line: power = b + m · load
U = (b + m) / P4 — full load (sf=1) anchors P4
A = ( b/U − P3 ) / (P4 − P3) — where idle sits in the P3→P4 range

The intercept b is the measured idle power, b+m the full-load power. Pinned to the compiled model by asserting the unit-test anchors P_DL(1)=280 · P_DL(0)=145 · 167.5 @ sa=0.5.

Fitting U and A from measured power vs load

Recovered on real fleets

Fleet	Fitted	Recovered A	Reading
ITU	688 macro BSs	0.41	≈ the 0.40 default — macro reference needs no re-tuning
NetData	4 775 cells	−0.10 → 0 floor	idle below P3 — small/medium RRUs more energy-proportional

A is clamped to [0,1] before any model curve is drawn

p. 10 / 11

ns-3 / 5G-LENA · nr moduleGSoC 2026 · mentor review

PHY-driven. Spec-anchored.
Hardware-checked.

Decoupled

Listeners hold no scheduler or MAC references — every energy input is a PHY trace. One listener per node type, single responsibility.

Spec-anchored

TR 38.840 Table 18 UE states with §8.1.3 scalings; TR 38.864 P1–P5 + P_DL/P_UL formulas with symbol-level slot accounting; TS 38.321 DRX semantics.

Validated

Real 24h NetData load traces reproduced in ns-3. Model-driven (check A) MAPE 4.0% / 7.2%; power read from the live listener in a full sim (check B) MAPE 9.0% / 4.6%, correlation 0.99.
